Extruder Drive Force Measurements
Bertho Boman

Setup Loadcell

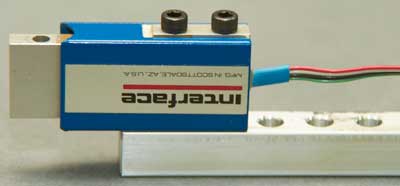

Loadcell on mounting bracket

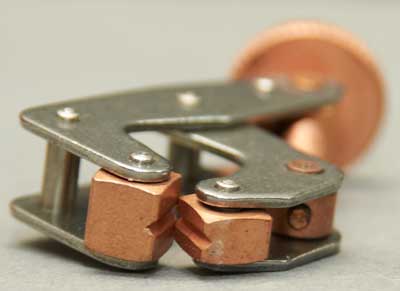

Clamp with notches

Measurement System

After designing an improved extruder drive for the Ultimaker 3D printer: http://www.vinland.com/UM_Extruder_Bearing.html, and then a procedure for measuring spring constants to use with the upgrade, http://www.vinland.com/Spring-Testing.html, the next question to resolve was how well is the upgrade is working. How much force will it provide, especially as related to the bearing pressure on the filament? That question triggered me to spend too much time measuring it.

Test Setup

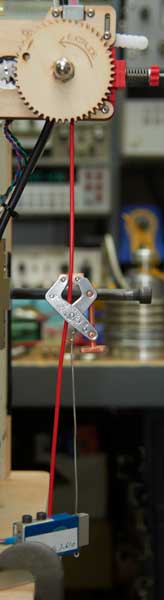

The extruder drive force pulling the filament is being measured in the picture above. A clamp is securely attached to the filament and it is pulling on a loadcell, a devise to accurately measure force, which is clamped to the desk.

The filament was not entering the extruder "hot end" so the measurements were not affected by the extrusion process.

After each test a new section of the filament was inserted to make sure the testing was done on a fresh section. Each setting was measured at least five times to make sure the data was repeatable.

vs Spring force
The Measured Data

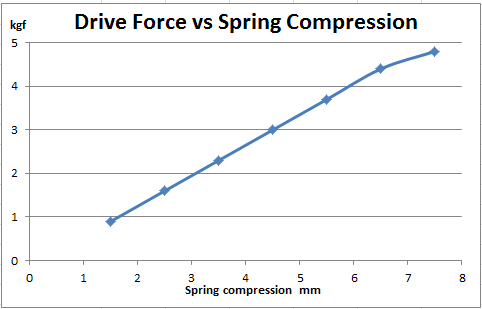

Since the spring rate is known from the previous mentioned measurements, the applied spring force can be calculated from the spring compression data. That was done and it generated the graph below.

Bearing Force

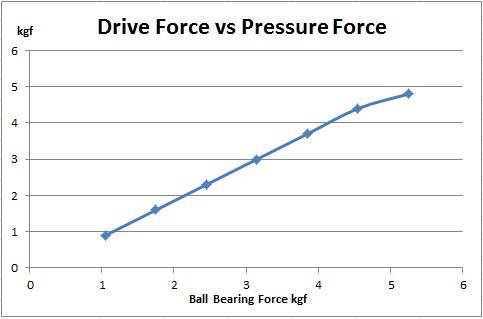

The Calculated Data

Interestingly, the extruder drive force is closely proportional to the spring pressure= bearing pressure. That relationship is expected with the assumption that the friction coefficient is constant. This information can be used to get the approximate force required for the spring pressure assuming that the Ultimaker version 3 knurled drive bolt is used.

Now the next question is "How much extrusion force is needed for different material, settings and printing speed?
